In the realm of modern optics, the terms optical lens and objective lens are frequently used, sometimes interchangeably by the untrained eye. However, in the scientific, photographic, and industrial domains, each term bears specific meaning, function, and structural identity. The optical lens is a broad term encompassing all types of lenses used to manipulate light, whereas the objective lens is a more specialized component used primarily in optical instruments such as microscopes, telescopes, and cameras. Understanding the distinction is critical for researchers, engineers, and photographers alike. This article delves deeply into their differences, similarities, functions, and applications to provide a comprehensive understanding.

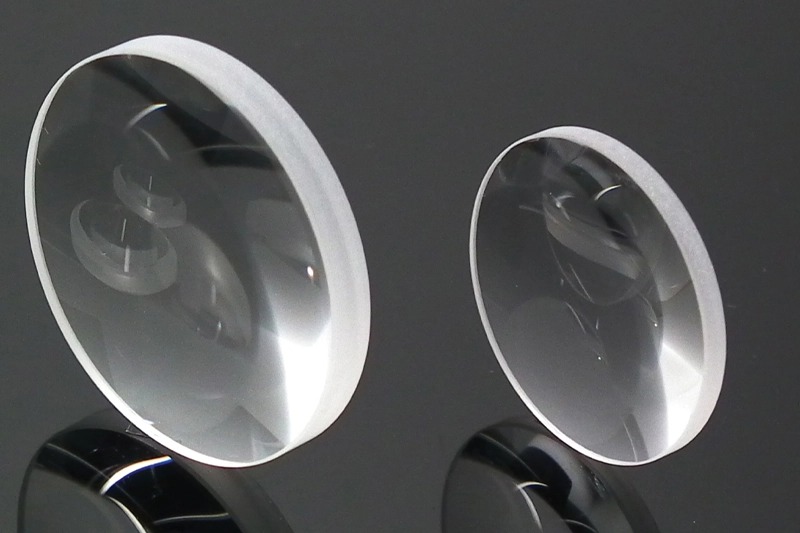

An optical lens is a transparent, curved object—usually made of glass or plastic—that refracts light in a controlled way to form an image. These lenses are foundational in a multitude of devices including eyeglasses, cameras, projectors, and scientific instruments.
There are two primary categories of optical lenses:
Convex (converging) lenses: These bend light rays inward, focusing them to a point. They are commonly used in magnifying glasses and corrective lenses for farsightedness.

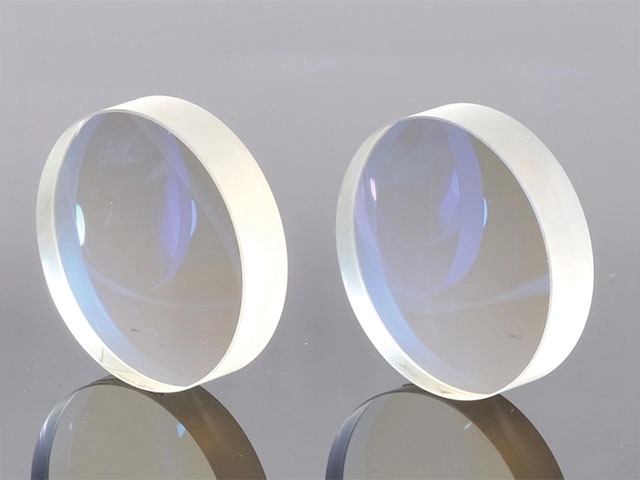

Concave (diverging) lenses: These spread light rays outward, used in devices requiring beam dispersion, such as laser systems or lenses for nearsightedness.
Optical lenses can be standalone or part of a complex lens system. Their effectiveness is determined by parameters such as focal length, curvature radius, lens coating, transmittance, and aberration control. Advances in lens manufacturing have enabled precision-engineered multi-element optical lenses with high clarity and minimal distortion.
In industrial and scientific applications, these lenses are customized to achieve specific refractive indexes, temperature resistance, and mechanical stability. From a macro camera lens to a tiny intraocular lens, the diversity in their application reflects their adaptability and essential role in light manipulation.
An objective lens, by contrast, is a specific type of optical lens located closest to the object being observed in an optical instrument. In devices like microscopes, telescopes, or binoculars, it plays the critical role of capturing the light from the subject and forming the first real image, which is then magnified further by an eyepiece or sensor.
Unlike general optical lenses, objective lenses are designed for high numerical aperture (NA), flat field correction, and minimized spherical and chromatic aberrations. Objective lenses can be classified into different types based on their correction and magnification properties:
Achromatic objectives: Corrects for two wavelengths, reducing color fringing.
Apochromatic objectives: Offers better correction across three wavelengths for superior image quality.
Plan objectives: Corrects curvature of field, resulting in a flat image across the field of view.
These lenses are engineered with intricate multi-lens assemblies to provide high resolution and contrast. Due to their proximity to the object and the precision required, they are typically the most expensive and delicate component in optical systems.
To visualize the differences clearly, here's a detailed comparison:
| Feature | Optical Lens | Objective Lens |
|---|---|---|
| Definition | Any lens used to manipulate light | Specialized lens used in optical instruments |
| Primary Function | Focus or disperse light | Capture detailed image of a subject |
| Location in Device | Varies (entry point, internal, output) | Closest to the object in microscopes, telescopes |
| Design Complexity | Can be simple or compound | Usually compound and multi-element |
| Usage Scope | General optics across various industries | Microscopy, astronomy, precision imaging |
| Aberration Control | Basic to moderate | High precision (achromatic, apochromatic) |
| Magnification Role | May or may not magnify | Primary magnifier in microscopes or telescopes |
In practical scenarios, the functional role of an optical lens compared to an objective lens becomes highly differentiated. For instance, a camera lens assembly might contain multiple optical lenses, but only one of them (if any) functions similarly to an objective lens by being closest to the subject and forming the primary image.
In microscopy, the objective lens determines the resolution, field of view, and working distance. The precision of this lens is paramount because any aberration introduced at this stage cannot be corrected downstream by the eyepiece or digital sensor. On the other hand, optical lenses in projectors or VR headsets aim to enlarge, focus, or correct the path of light for a broader viewing experience.
In telescopic systems, objective lenses are tasked with capturing dim light from distant celestial bodies. They are finely tuned to gather maximum light without distortion, whereas other optical lenses within the system work to refine and direct that image.
Thus, while all objective lenses are optical lenses, not all optical lenses are objective lenses. The objective lens’s purpose is singular and specialized—making it indispensable in fields demanding extreme clarity and magnification.
Both optical and objective lenses are constructed from high-purity optical glass or advanced polymers. However, the tolerances and coatings differ greatly.
Objective lenses are often coated with multi-layer anti-reflective coatings, phase correction layers, and even hydrophobic surfaces to enhance transmission, reduce internal reflections, and improve longevity. The glass types used—such as fluorite or low-dispersion glass—are selected specifically to counteract chromatic aberrations.
In contrast, general optical lenses might be coated primarily for UV protection, glare reduction, or scratch resistance. Because they serve broader and less critical roles, the materials and coatings used are generally more economical and versatile.
This construction difference also explains the disparity in cost, maintenance requirements, and durability. An objective lens for a biological microscope might cost hundreds to thousands of dollars due to the complexity involved, while a simple plano-convex lens for a projector might cost under ten.
No. While all objective lenses are a subset of optical lenses, the reverse is not true. Optical lenses serve general purposes, while objective lenses have specific roles in imaging systems.
Not typically. Optical lenses lack the precision and compound structure required to serve as objective lenses in professional instruments. However, in DIY or low-resolution projects, a high-quality optical lens might serve as a basic objective.
Objective lenses undergo meticulous grinding, polishing, and coating to meet high performance standards. Their internal alignment, multi-element architecture, and high-grade materials make them significantly costlier.
Numerical aperture (NA) is a measure of an objective lens's ability to gather light and resolve fine detail. Higher NA results in better resolution, especially critical in microscopy and telescopic imaging.
Understanding the distinction between optical lenses and objective lenses is vital for anyone working in fields related to imaging, optics, or precision instrumentation. While both types of lenses manipulate light, their design, application, and engineering requirements differ significantly.
Optical lenses provide versatility and are used across a broad spectrum of industries. Objective lenses, on the other hand, serve a critical and singular purpose: to capture and deliver a high-fidelity image of the subject with minimal error. Their precision and specialization make them indispensable in scientific research, astronomy, medical imaging, and high-end photography.
So, the next time you're adjusting a microscope or peering through a telescope, you'll know exactly what that objective lens is doing—and how it's fundamentally different from every other optical lens in the system.
